AI Theta Lens
UVC-AI-Theta-Lens
$79.00
Coming Soon

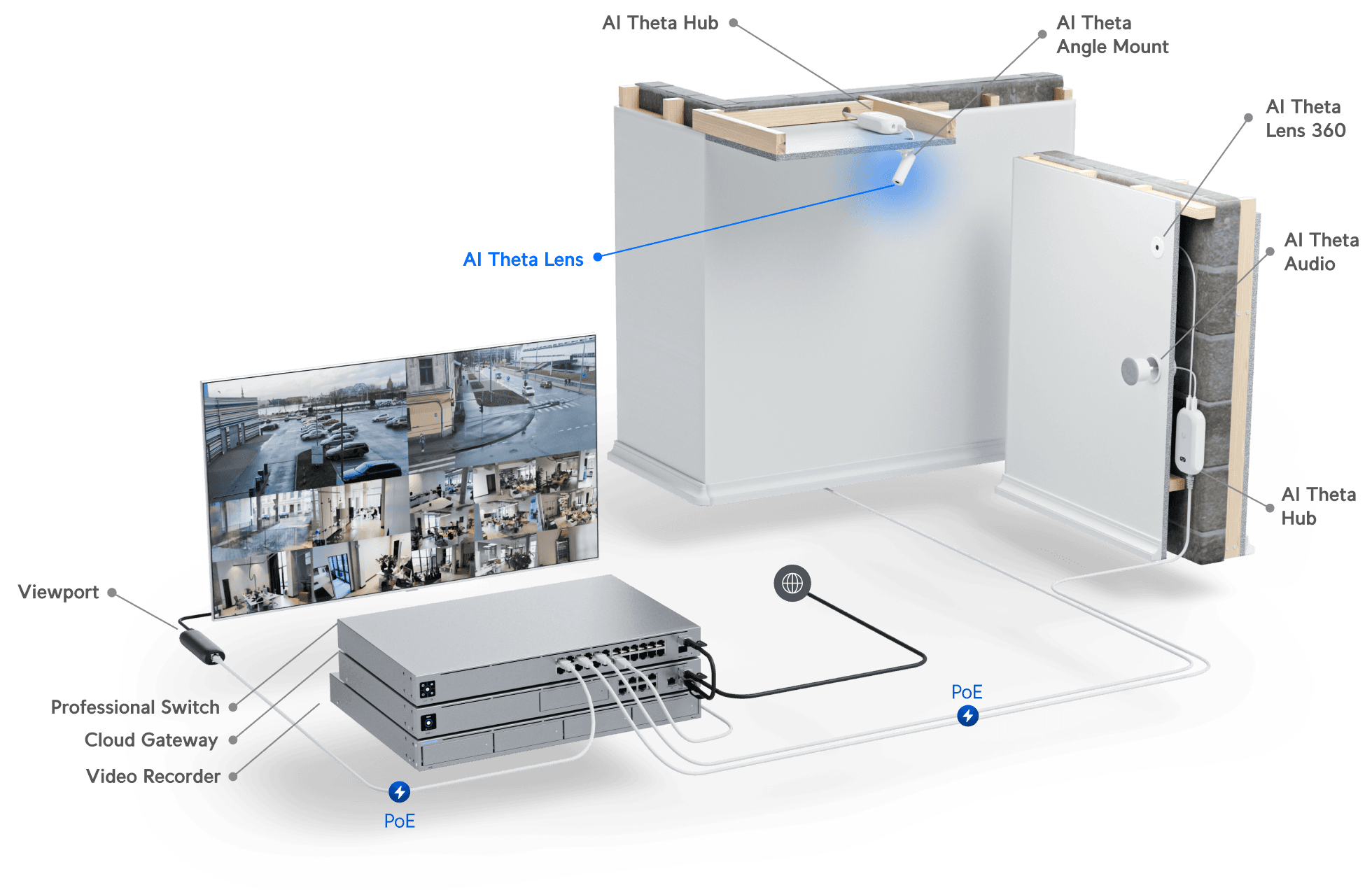

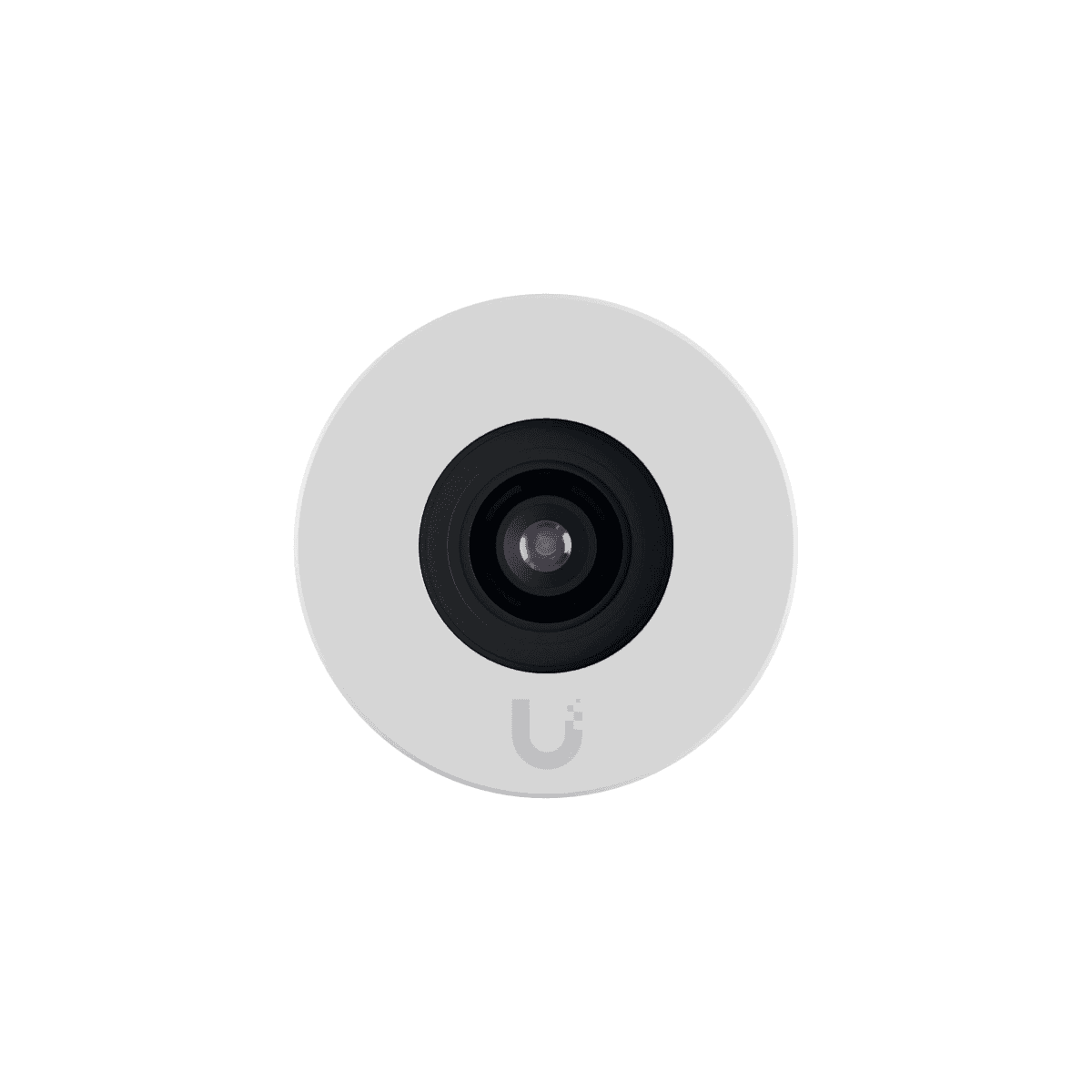

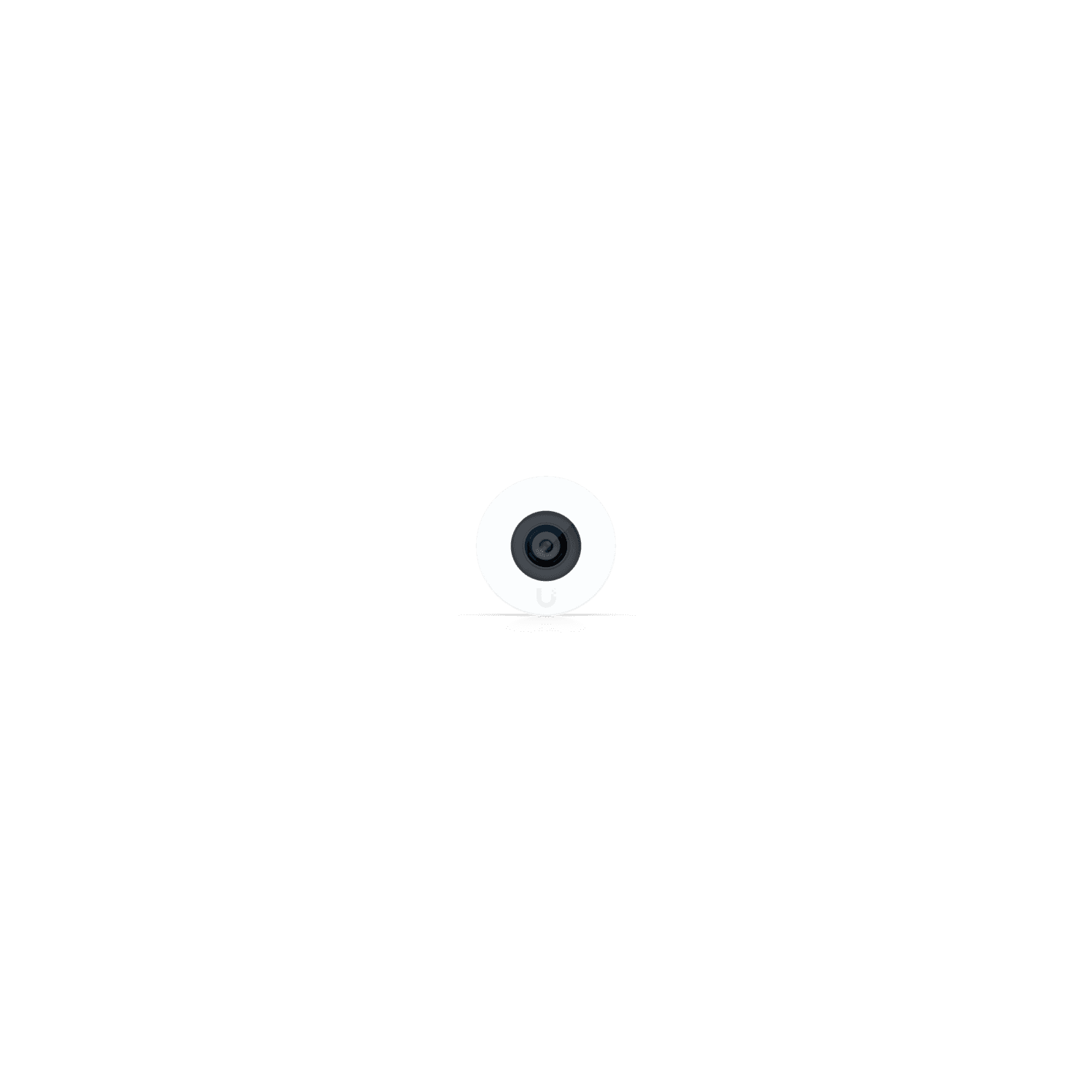

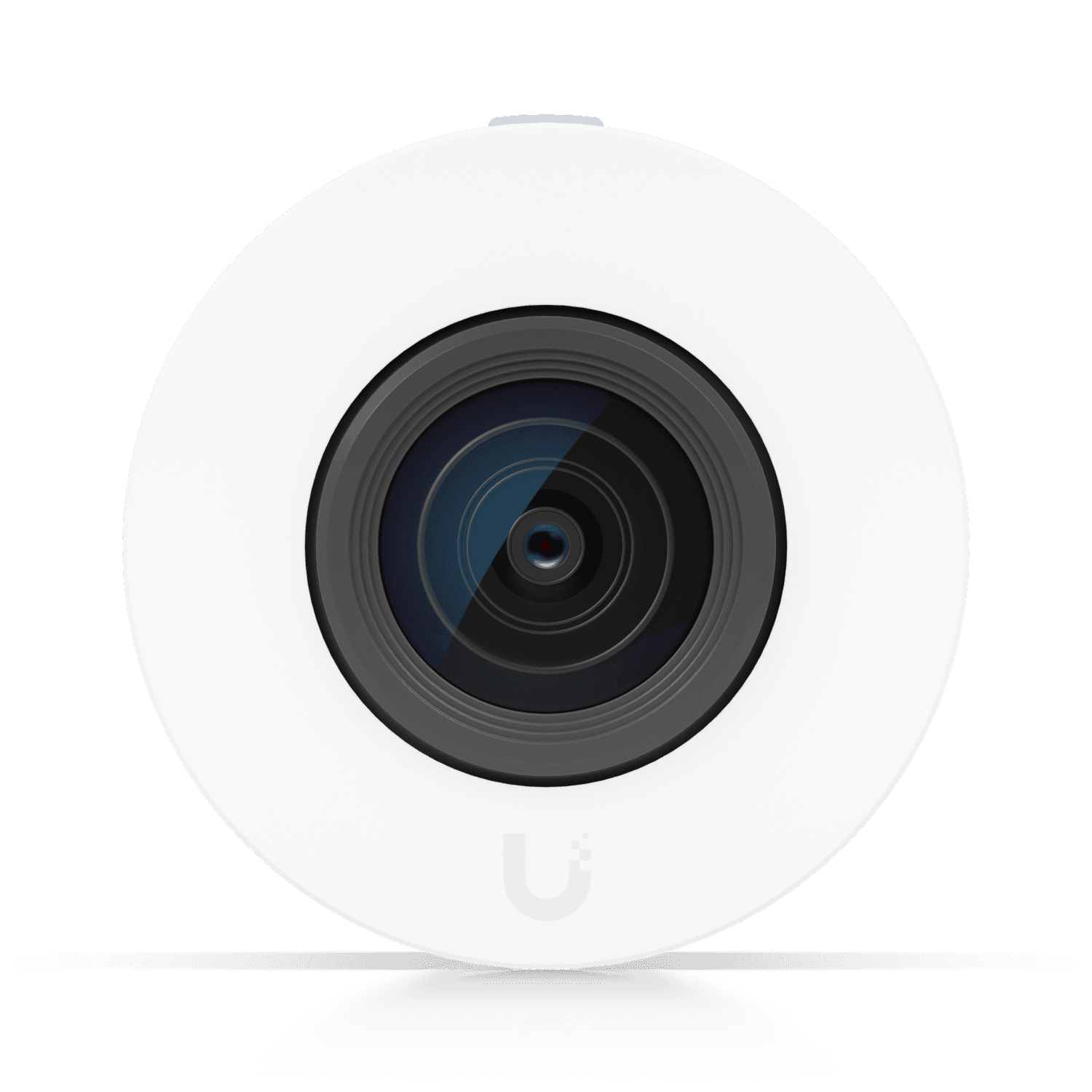

Wide-angle lens that connects to an AI Theta Hub.

4K (8MP) video resolution

97.5° horizontal field of view

Ideal for securing large, busy spaces such as entrances and lobbies

Includes Standard Flush Mount for flat ceiling or wall mounting

Compatible with AI Theta Angle Mount for flexible ceiling or wall mounting

To subscribe to back in stock e‑mails.
Installation Guide
Technical Specifications
Mechanical

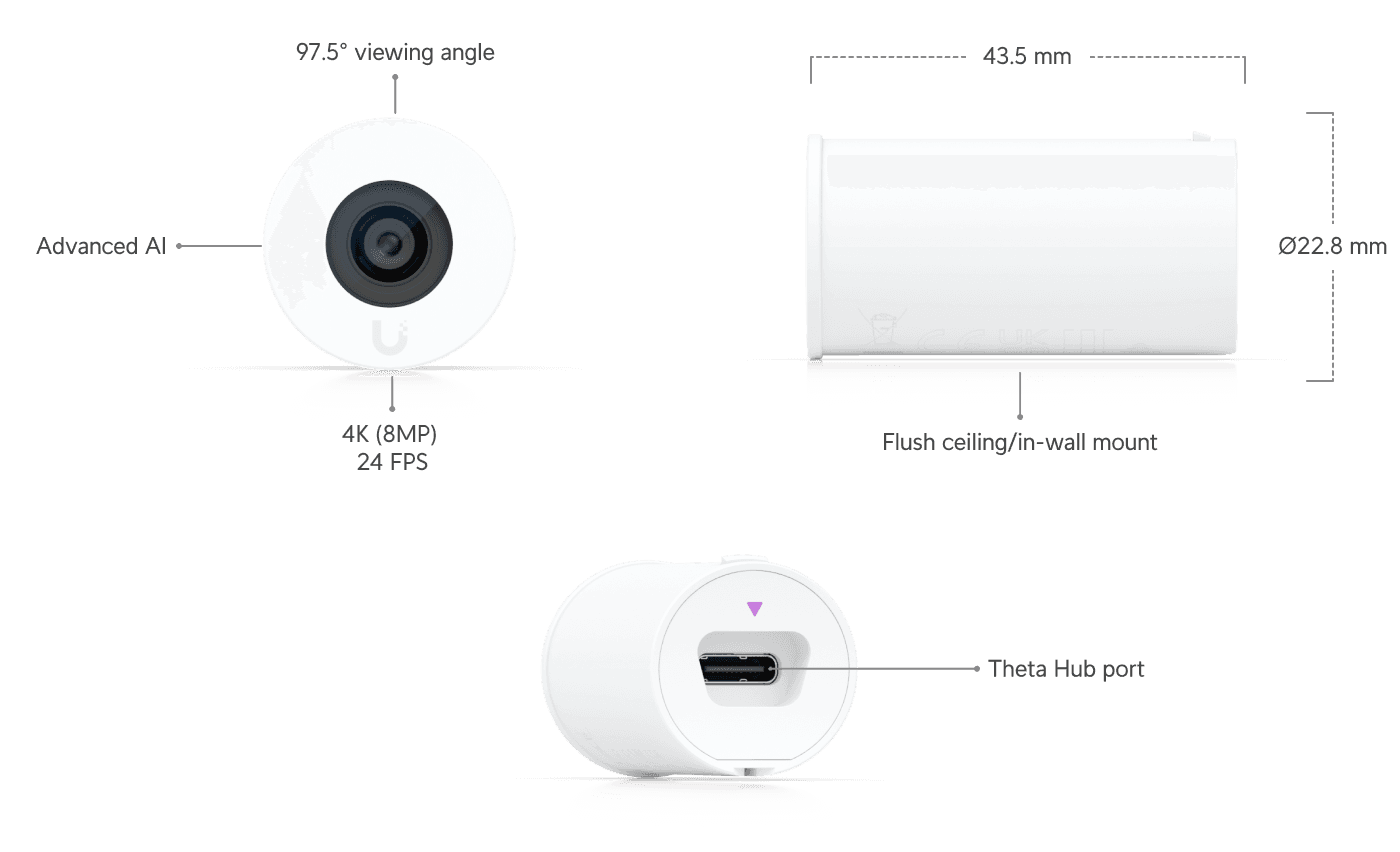

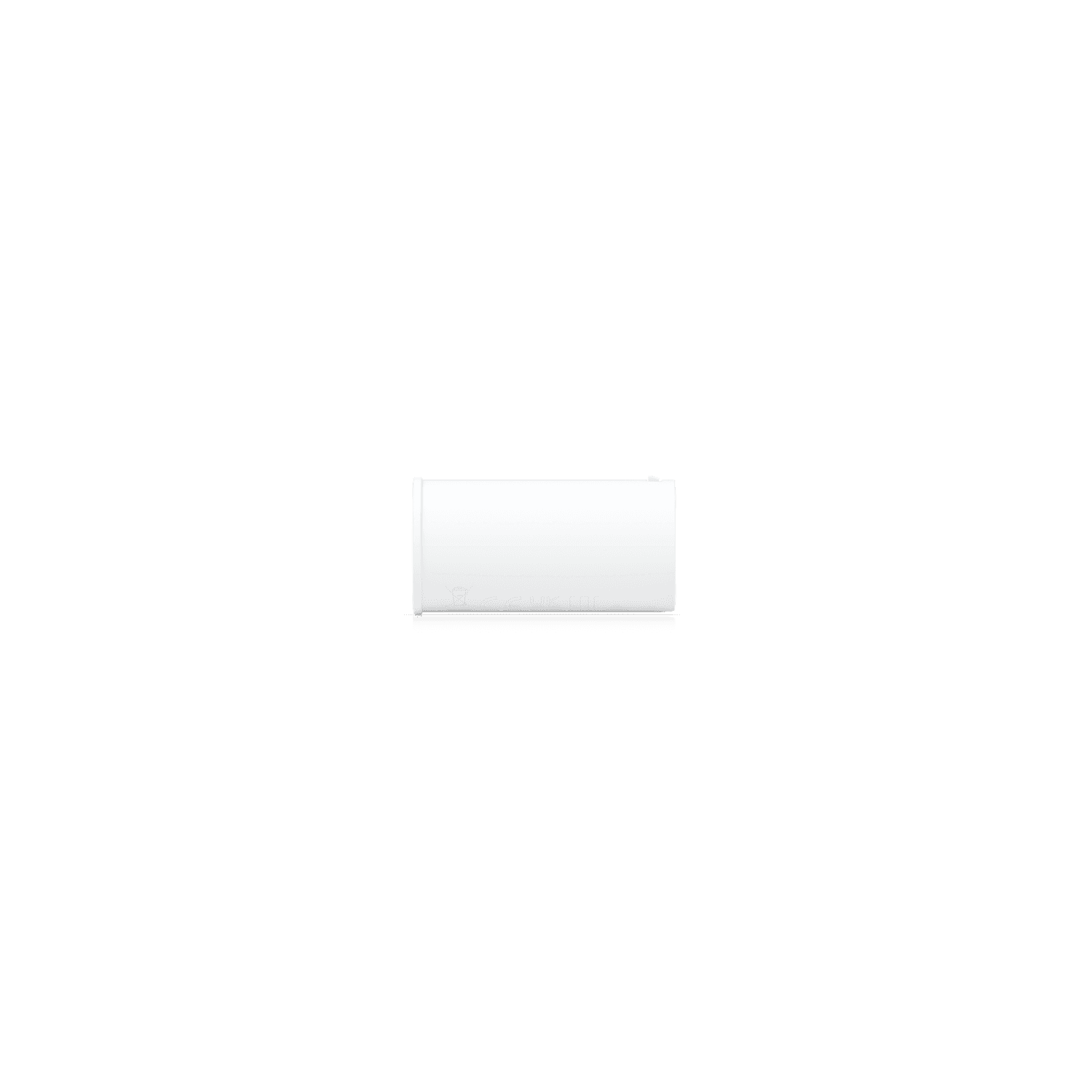

DimensionsØ22.8. x 43.5 mm (Ø0.9 x 1.7”)
Weight15 g (0.5 oz)
Enclosure materialAluminum alloy, polycarbonate
Mount materialPolycarbonate
WeatherproofingIndoor only
Optics
Sensor8MP CMOS
LensFixed focal length
View angleH: 97.5°, V: 79.4°, D: 118.2°
Video
Video compressionH.264
Resolution8MP 3264 x 2448 (4:3)
Max. frame rate24 FPS
Image settingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System

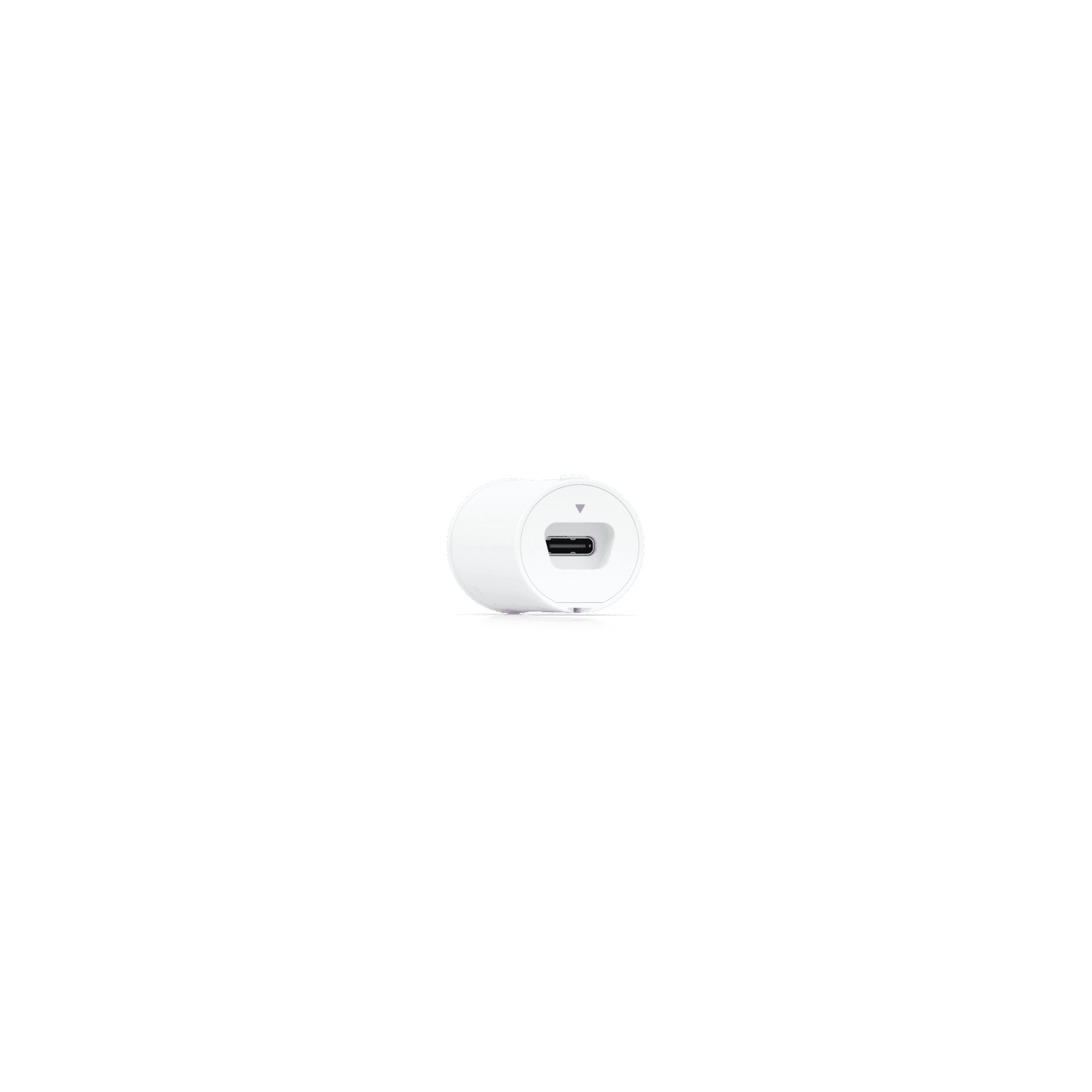

Power methodTheta proprietary
Power supply5V DC, 0.5A
Max. power consumption2.5W
MountingWall, ceiling mount (Included)
Angle mount (Sold separately)
Ambient operating temperature-20 to 40° C (-4 to 104° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsFCC, IC, CE
