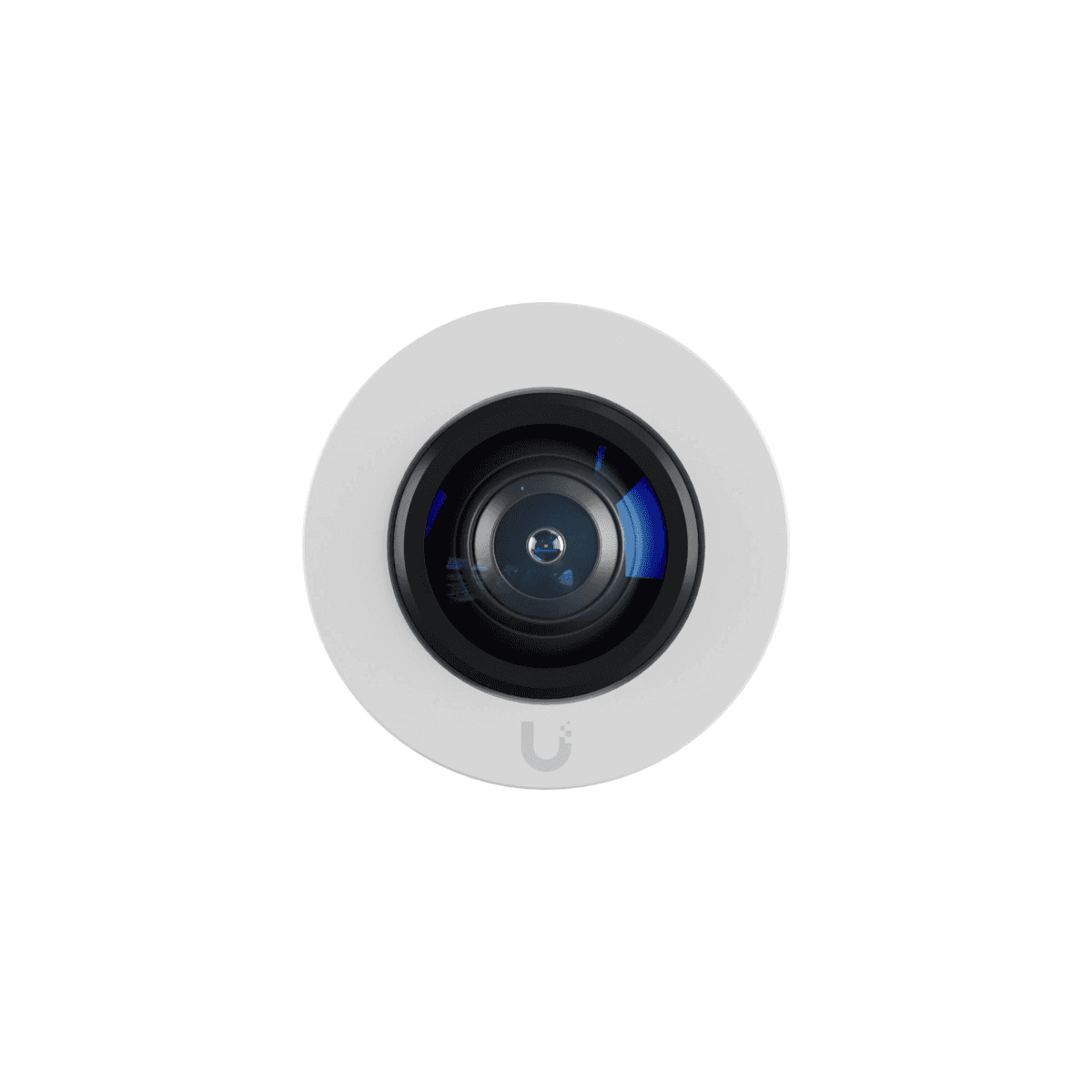

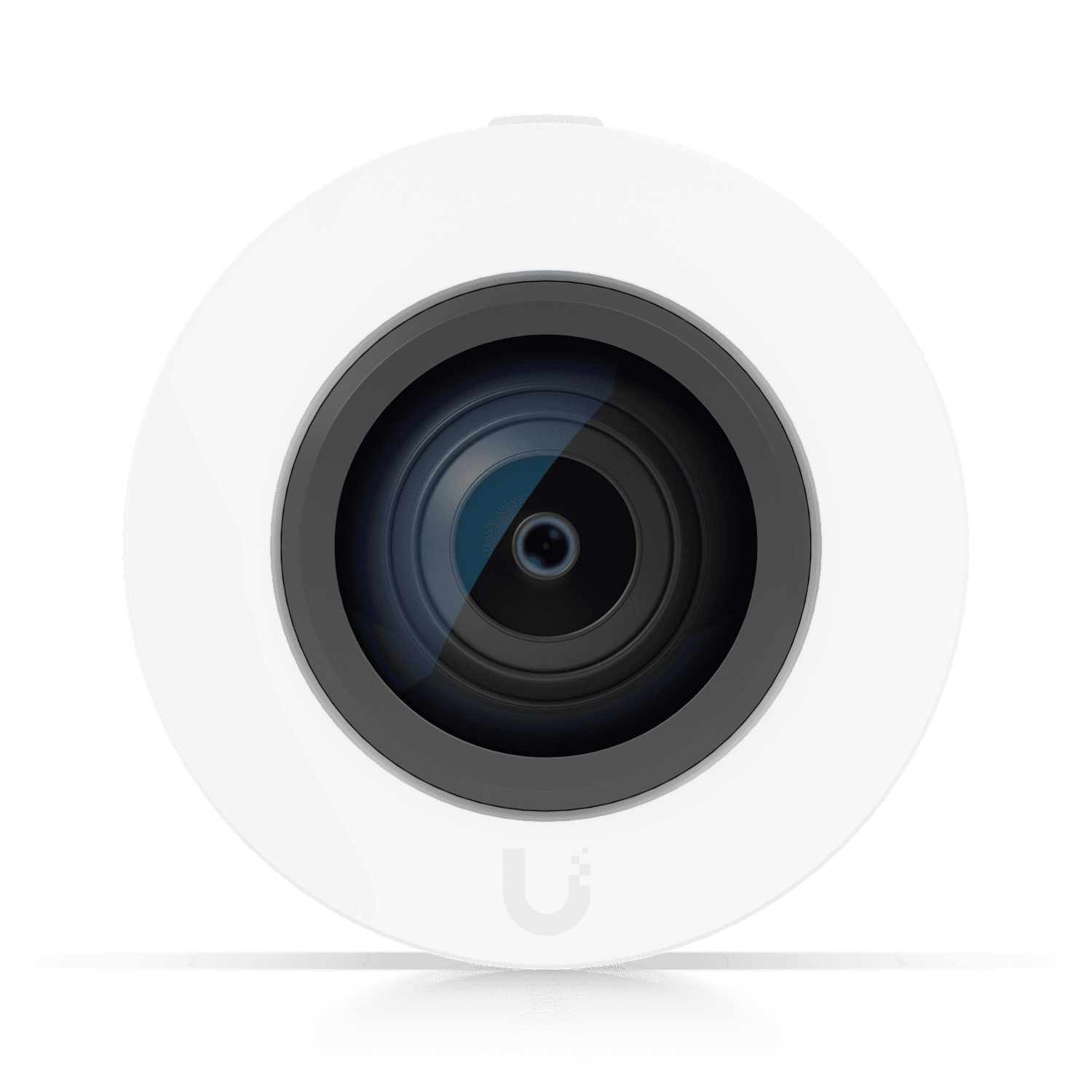

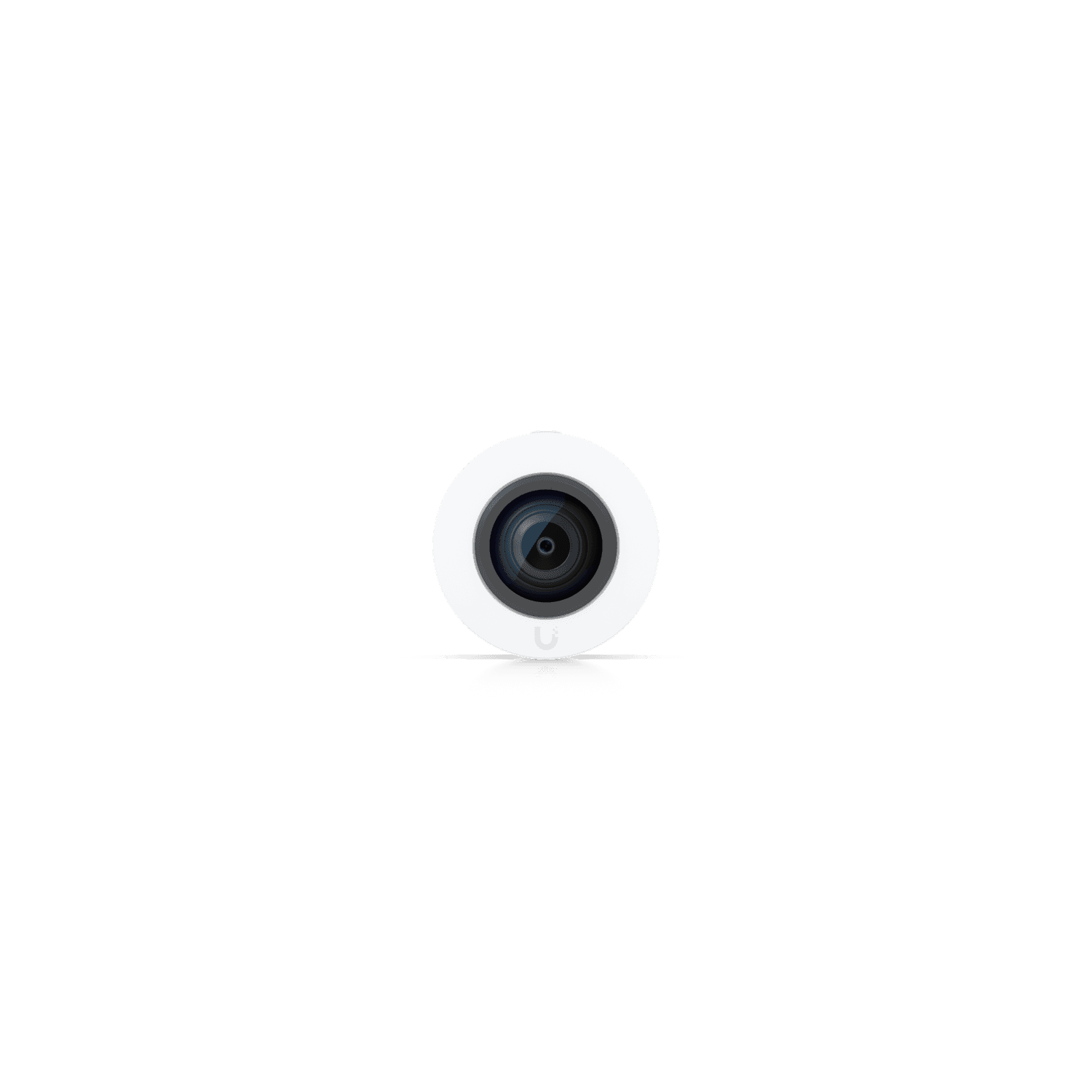

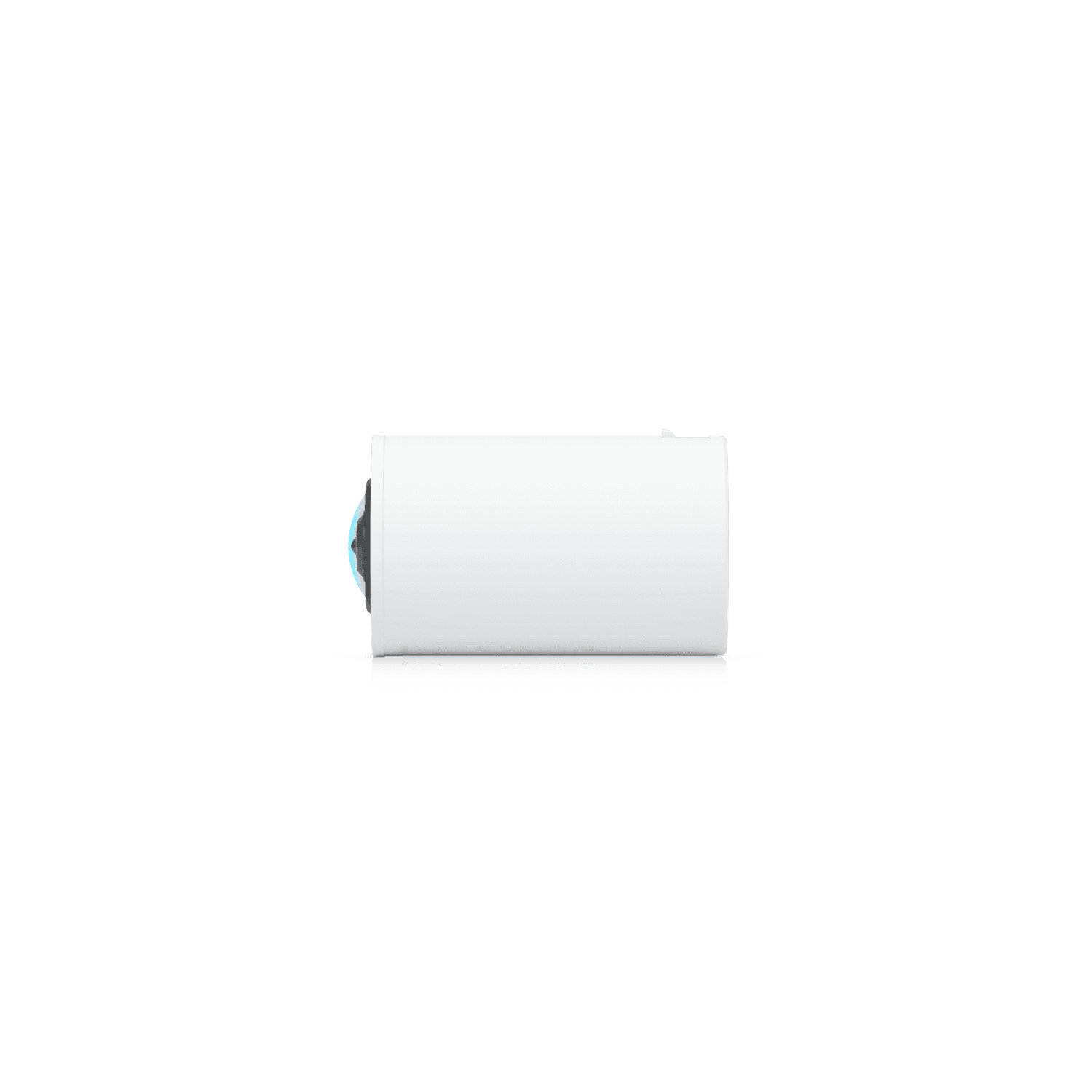

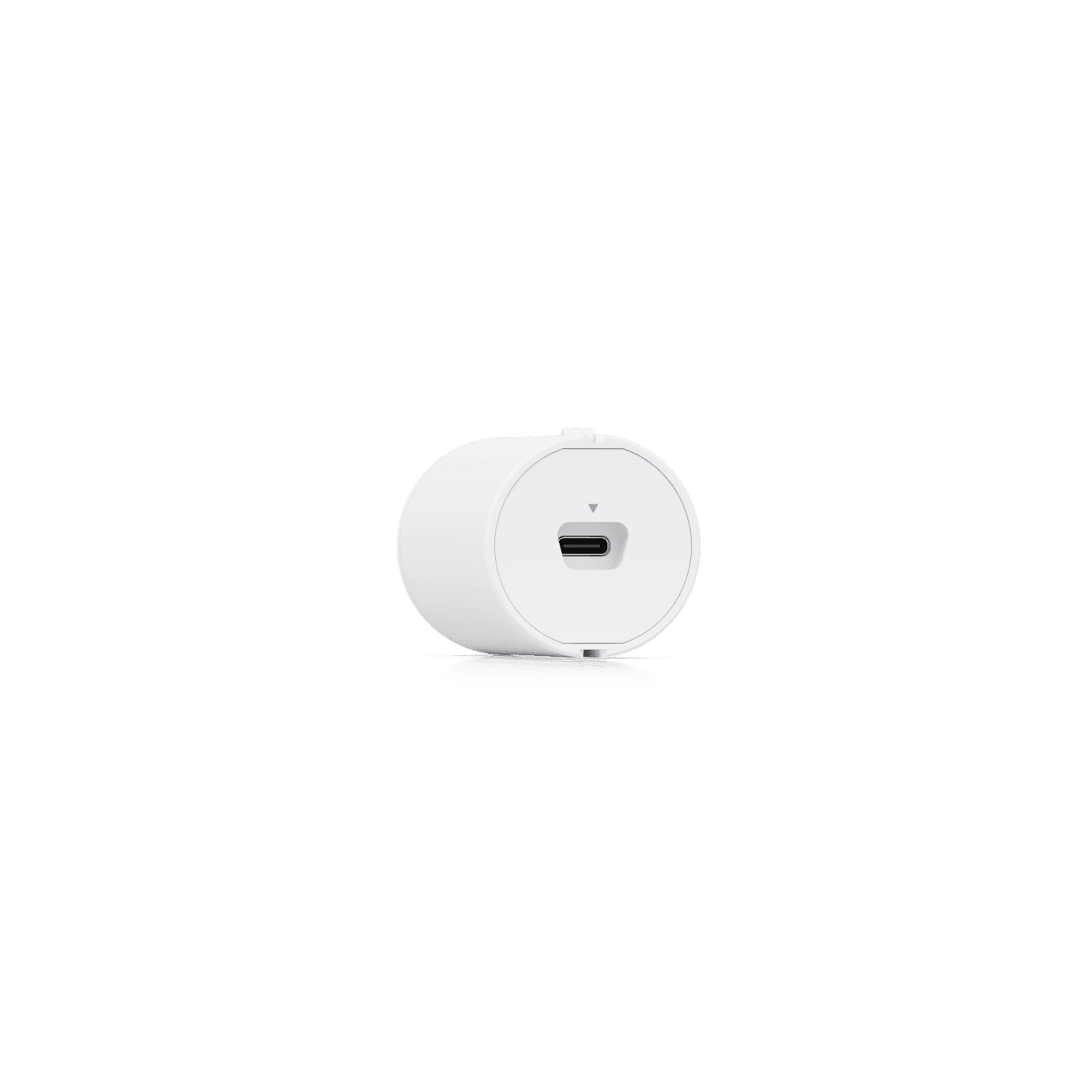

AI Theta Pro 360 Lens
Ultra-wide 360° view lens with enhanced low-light performance and dynamic range that connects to an AI Theta Hub.

4K (8MP) resolution with ultra-wide 360° view

Exceptional image quality with superb low-light performance and enhanced dynamic range

Ideal for panoramic coverage of large, busy spaces such as entrances, lobbies, and retail floors

Includes Standard Flush Mount for flat ceiling or wall mounting

Compatible with AI Theta Pro Mounts

Installation Guide
Technical Specifications

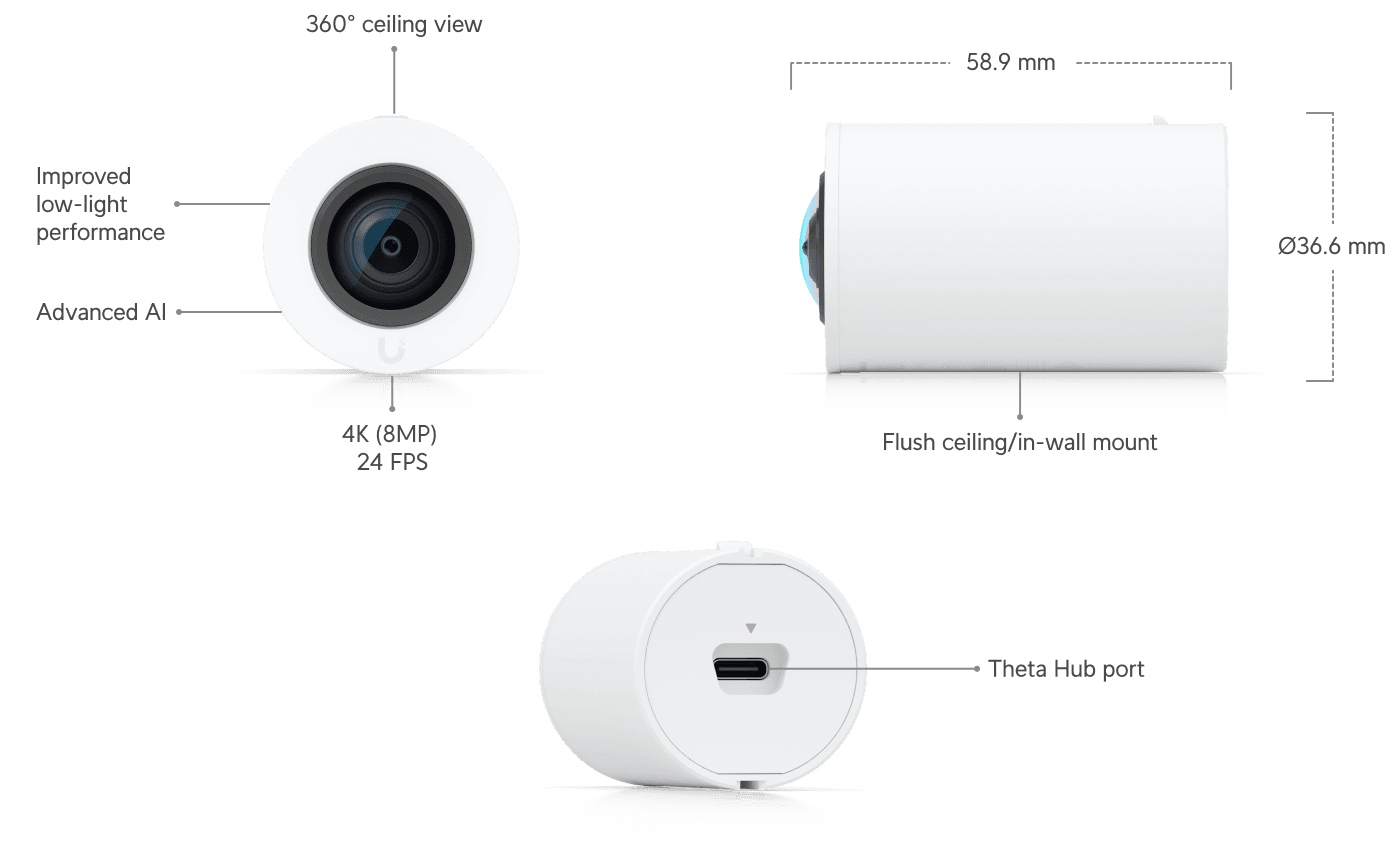

DimensionsØ36.6 x 58.9 mm (Ø1.4 x 2.3”)
Weight58 g (2 oz)
Enclosure materialAluminum alloy, polycarbonate
Mounting materialPolycarbonate
WeatherproofingIndoor only
Sensor8MP 1/1.8"
LensFixed focal length
View angleH: 180°, V: 180°, D: 180°
Video compressionH.264
Resolution4MP 2160 x 2160 (1:1)
Max. frame rate24 FPS
Image settingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Power methodTheta proprietary
Power supply5V DC, 0.5A
Max. power consumption2.5W
MountingWall, ceiling mount (Included)
Flush mount (Sold separately)
Ambient operating temperature0 to 40° C (32 to 104° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsFCC, IC, CE
