LTE category 4 mobile WiFi router
VPN client routing
Automatic failover between LTE and wired WAN
(2) GbE ports with (1) PoE output*
Powered using PoE, USB Type-C, or 4-pin DC power socket
Optional Mobility Cloud subscription**
*PoE+ input required for PoE passthrough.
**Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal for $2 CAD/month per Mobile Router. Mobility Cloud is not required when using your own nano-SIM. Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
|Dimensions||220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1")|
|Weight||Without mount: 257 g (9.1 oz)
With mount: 303 g (10.7 oz)
|Mount materials||Wall mount: polycarbonate
DIN rail mount: steel
|Processor||74 Kc MIPS processor at 775 MHz|
|Memory||128 MB DDR2|
|Networking interface||(2) GbE RJ45 ports
LTE Category 4 radio
|PoE interface||(1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE+ switch.
|LTE bands||B2, B4, B5, B12, B14, B66|
|LTE throughput speed*||Download 150 Mbps / Upload 50 Mbps
*Speed depends on network coverage and performance at the device location.
|WiFi standards||802.11 b/g/n, WiFi 2.4G, 20/40 MHz|
|Antennas||(1) External LTE antenna (main + aux) with TS9 male connectors
(1) Internal WiFi 2.4 GHz antenna
(1) Internal GPS antenna
|Power supply||UniFi PoE switch (48—54V DC, 0.625A)
USB Type-C (5V DC, 3A)
4-pin* ATX DC power socket (9V DC, 1A)
*Please refer to the Installation Guide for power socket pinout.
|Max. power consumption||9W|
|LCM display||1.3" screen|

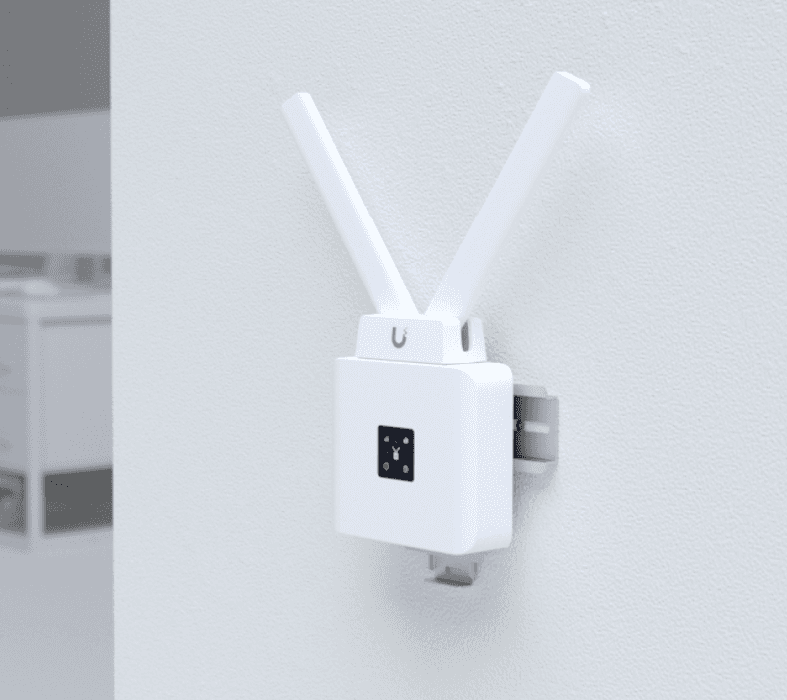

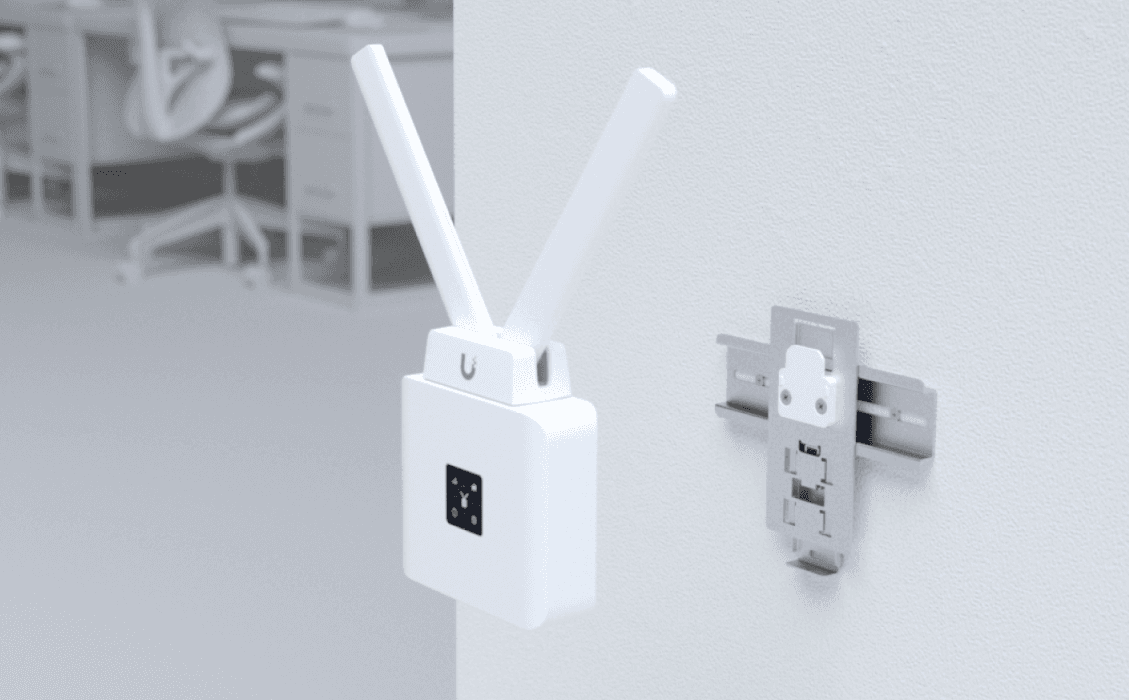

|Mounting||DIN rail/wall (included)|
|Operating temperature||-20 to 45° C (-4 to 113° F)|
|Operating humidity||5 to 95% noncondensing|
|Certifications||FCC, IC, PTCRB|
|Supported WiFi Data Rates|
|802.11b||1, 2, 5.5, 11 Mbps|
|802.11g||6, 9, 12, 18, 24, 36, 48, 54 Mbps|
|802.11n (WiFi 4)||6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)|
