Features:
<ul>
<li>(16) GbE, PoE+ RJ45 ports</li>
<li>(8) GbE RJ45 ports</li>
<li>(2) 1G SFP ports</li>
<li>95W total PoE availability</li>
<li>1.3&quot; LCM color touchscreen with AR switch management</li>
</ul>
Managed with the UniFi Network application: Version 7.2.94 and later

Installation Guide

Datasheet

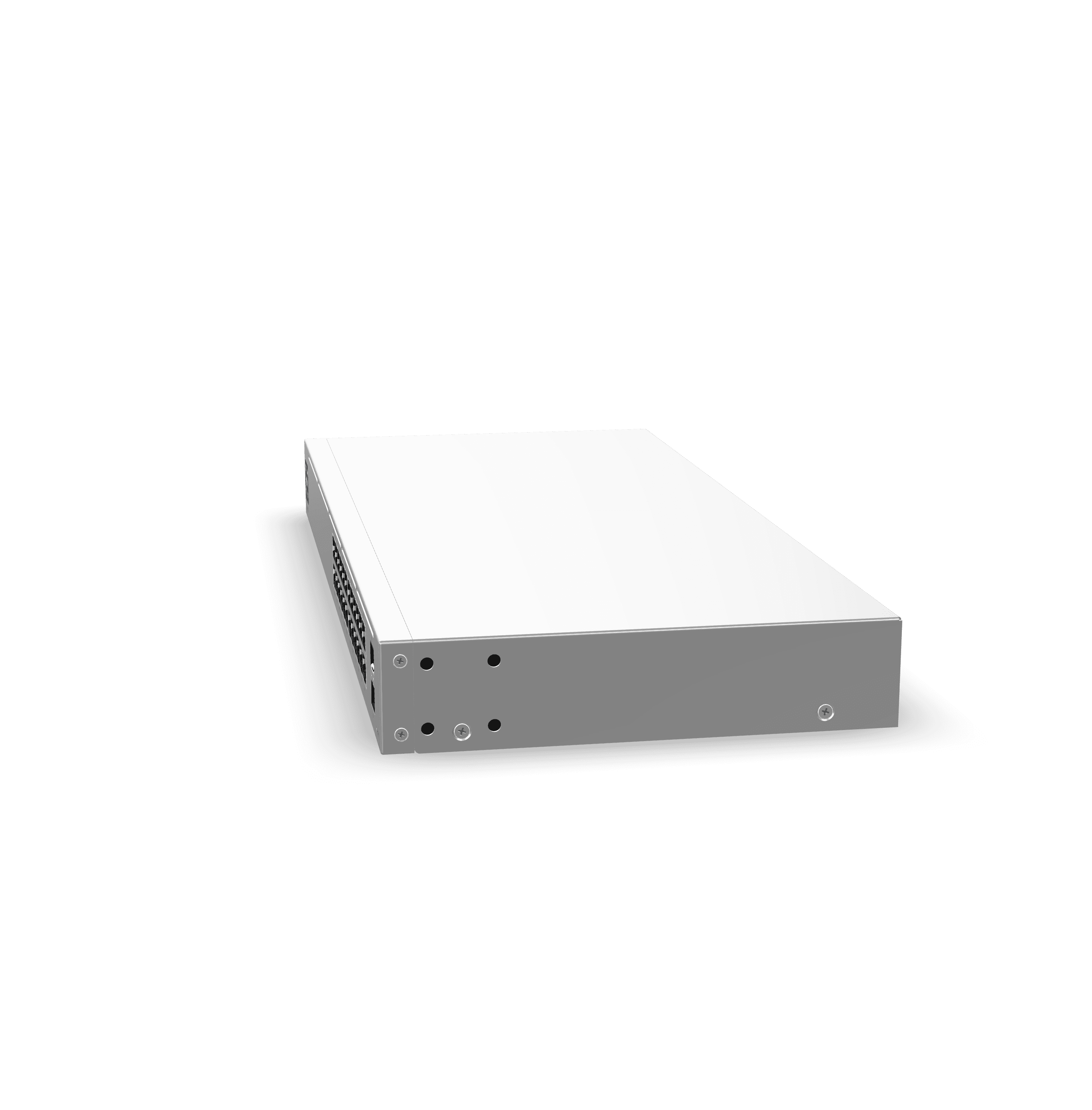

USW-24-POE

A 24-port, Layer 2 PoE switch with a fanless cooling system.

Switch 24 PoE

Standard 24 PoE

Default

Features:
<ul>
<li>Bendable booted RJ45</li>
<li>Ultra-thin OD 3mm</li>
<li>Cable length 0.1 m up to 8 m</li>
<li>Pass TIA-568-B.2 Cat6 Channel test by Fluke</li>
</ul>

UC-Patch-RJ45

Color

White

Blue

Black

Length

0.1 m

0.3 m

0.1 m (50-pack)

Ethernet Patch Cable

UniFi Patch Cable

White / 0.1 m

Blue / 0.1 m

Black / 0.1 m

White / 0.3 m

Blue / 0.3 m

Black / 0.3 m

White / 1 m

Blue / 1 m

Black / 1 m

White / 2 m

Blue / 2 m

Black / 2 m

White / 3 m

Blue / 3 m

Black / 3 m

White / 5 m

Blue / 5 m

Black / 5 m

White / 8 m

Blue / 8 m

Black / 8 m

White / 0.1 m (50-pack)

Blue / 0.1 m (50-pack)

Black / 0.1 m (50-pack)

The 10 Gbps Direct Attach Cable is an SFP+ compatible cable capable of sustaining 10 Gbps throughput. Available in 3 lengths, this cable is perfect for creating short links between switches that deliver 10 Gbps speed throughout your network.
Features:
<ul>
<li>Supported data rates: 10/1 Gbps</li>
<li>SFP+ to SFP+ connector</li>
<li>Passive copper cable</li>
</ul>

UACC-DAC-SFP10

0.5 m

SFP+ direct attach cable available in multiple lengths.

10 Gbps SFP+ Direct Attach Cable

The 1 Gbps Multi-mode Optical Module is a duplex transceiver that delivers up to 1.25 Gbps speed over distances up to 550 meters.
Features:
<ul>
<li>1.25 Gbps throughput</li>
<li>Duplex LC connector</li>
<li>Supports connections up to 550 m</li>
<li>Supported media: MM Fiber (Fiber cable is not included)</li>
</ul>

UACC-OM-MM-1G-D-2

Pack Type

2-Pack

20-Pack

Multi-mode, duplex, fiber transceiver module.

1 Gbps Multi-Mode Optical Module

USW-48

A 48-port, Layer 2 switch with a silent, fanless cooling system.

Standard 48

Switch 48

USW-24

A 24-port, Layer 2 switch with a silent, fanless cooling system.

Standard 24

Switch 24

US-48-500W

Layer 2, PoE switch with (48) GbE, PoE+ and 24V passive PoE RJ45 ports, (2) 1G SFP ports, and (2) 10G SFP+ ports.

Standard 48 PoE (Gen1)

Switch 48 PoE (500W)

USW-48-POE

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.

Standard 48 PoE

Switch 48 PoE

US-24-250W

Layer 2, PoE switch with (24) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.

Standard 24 PoE (Gen1)

Switch 24 PoE (250W)

USW-16-POE

A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.

Standard 16 PoE

Switch 16 PoE

US-16-150W

Layer 2, PoE switch with (16) GbE, PoE+ and 24V passive PoE RJ45 ports and (2) 1G SFP ports.

Standard 16 PoE (Gen1)

Switch 16 PoE (150W)

Mechanical
Dimensions	442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
Weight	Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(24) GbE RJ45 ports (2) 1G SFP ports
PoE interface	(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	26 Gbps
Switching capacity	52 Gbps
Forwarding rate	38.69 Mpps
Power method	Universal input, 100—240V AC, 50/60 Hz
Power supply	AC/DC, internal, 120W
Supported voltage range	100—240V AC
Max. power consumption	25W (Excluding PoE output)
Total available PoE	95W
Max. PoE wattage per port by PSE	PoE+: 32W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Shock and vibration	ETSI300-019-1.4 Standard
Operating temperature	-5 to 40° C (23 to 104° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
LEDs
System	Status
Ethernet	PoE Speed/link/activity
SFP	Link/activity
Application Requirements
UniFi Network	Version 7.2.94 and later
